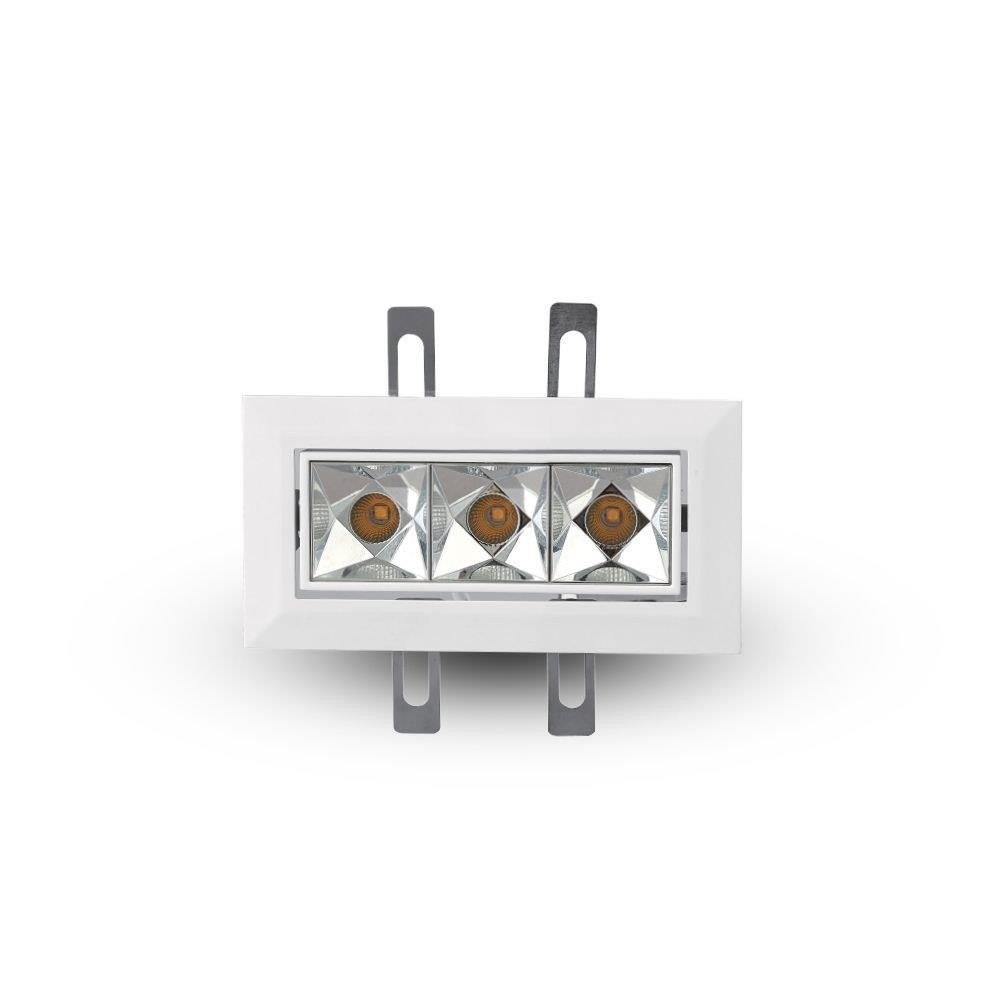

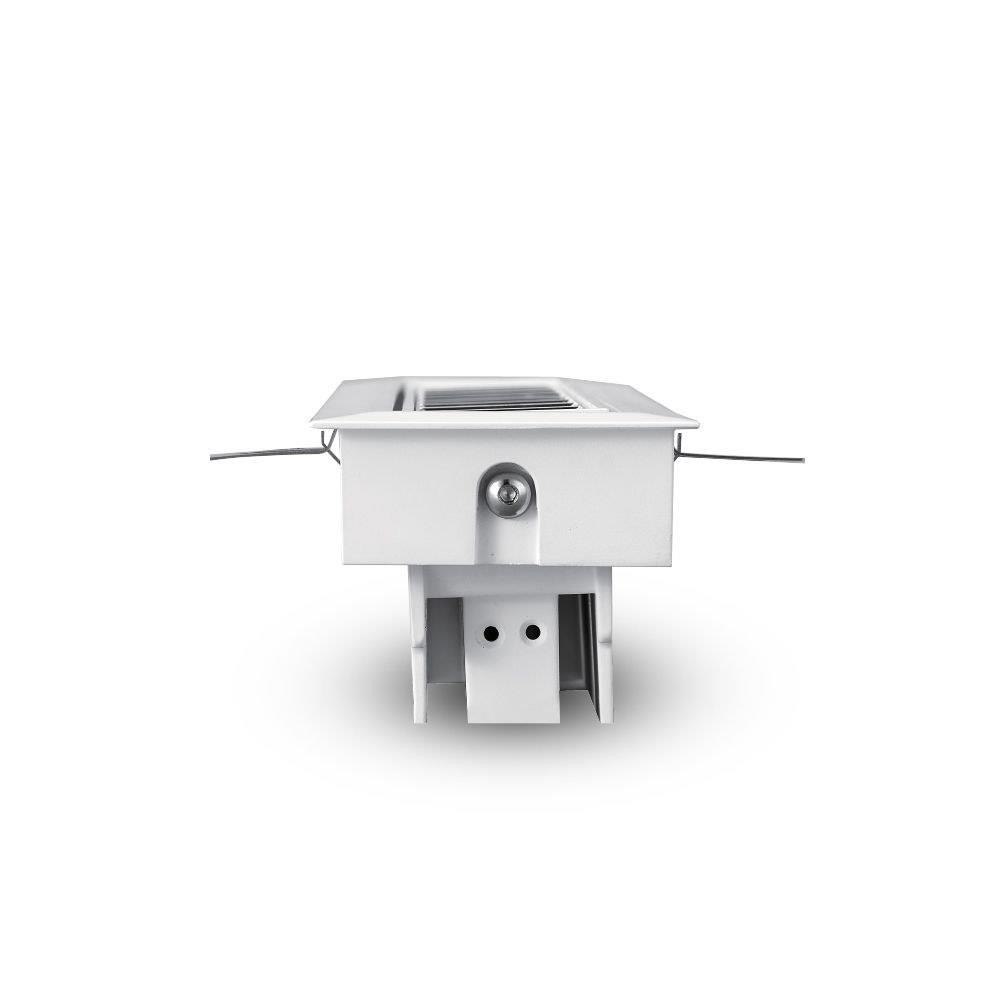

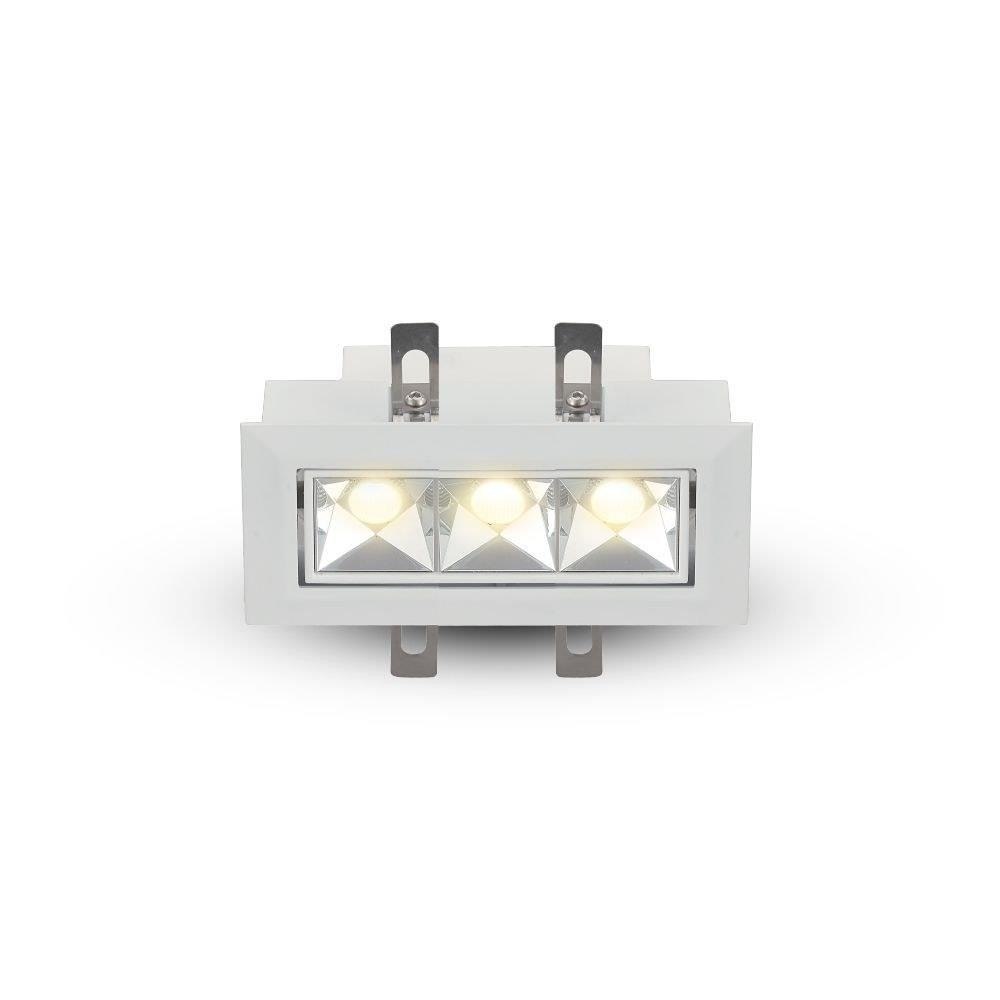

The Rubik series features a sleek aluminum body finished in crisp white, offering a minimalist yet sophisticated aesthetic. Its compact, 5-inch length and 2.5-inch width make it ideal for low-profile ceilings. The adjustable trim design allows for versatile light direction, while the clean lines and modern look seamlessly integrate into contemporary interiors.

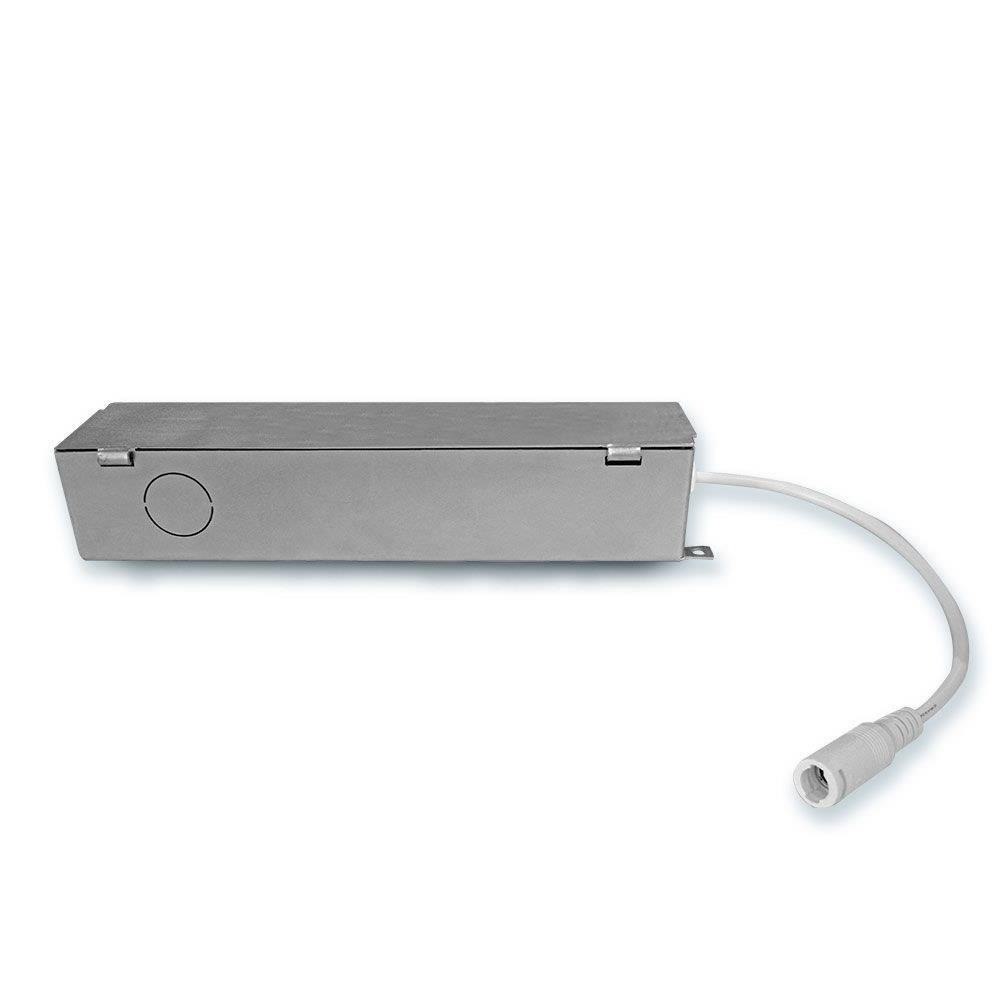

This LED recessed downlight is designed for easy recessed installation in standard ceiling openings measuring 4.75 inches by 2.25 inches. The fixture is IC rated, making it safe for direct contact with insulation. It includes a remote driver housed in an electrical box measuring 8.46 inches by 1.77 inches by 1.57 inches, ensuring straightforward wiring and compatibility with a variety of ceiling types. The fixture offers a stock beam angle of 34°, with optional 12°, 20°, and 48° beam angles available via special order for customized lighting effects.
| Measurement / Specification | Details |
|---|---|
| Fixture Dimensions | 5"L x 2.5"W x 2.25"H |
| Hole Size | 4.75"L x 2.25"W |
| Electrical Box Dimensions | 8.46"L x 1.77"W x 1.57"H |
| Wattage | 8.6W |
| Brightness | 576 Lumens |
| Color Temperature | 3000 Kelvin |
| Beam Angle | 34° (stock), optional 12°, 20°, 48° (special order) |
| Voltage | 100-277V |
| CRI | 90 |
| Finish | White |
| Material | Aluminum body |
| IP Rating | IP20 (dry rated) |
| Certifications | ETL, cETL, Title 20, Title 24, Prop 65, Energy Star |
| Warranty | 3 Years Limited |
For more details on installation and compatibility, visit our Recessed Downlights Guide. Browse our selection of LED Downlights for other stylish lighting options.
The Rubik series features a sleek aluminum body finished in crisp white, offering a minimalist yet sophisticated aesthetic. Its compact, 5-inch length and 2.5-inch width make it ideal for low-profile ceilings. The adjustable trim design allows for versatile light direction, while the clean lines and modern look seamlessly integrate into contemporary interiors.
This LED recessed downlight is designed for easy recessed installation in standard ceiling openings measuring 4.75 inches by 2.25 inches. The fixture is IC rated, making it safe for direct contact with insulation. It includes a remote driver housed in an electrical box measuring 8.46 inches by 1.77 inches by 1.57 inches, ensuring straightforward wiring and compatibility with a variety of ceiling types. The fixture offers a stock beam angle of 34°, with optional 12°, 20°, and 48° beam angles available via special order for customized lighting effects.
| Measurement / Specification | Details |
|---|---|
| Fixture Dimensions | 5"L x 2.5"W x 2.25"H |
| Hole Size | 4.75"L x 2.25"W |
| Electrical Box Dimensions | 8.46"L x 1.77"W x 1.57"H |
| Wattage | 8.6W |
| Brightness | 576 Lumens |
| Color Temperature | 3000 Kelvin |
| Beam Angle | 34° (stock), optional 12°, 20°, 48° (special order) |
| Voltage | 100-277V |
| CRI | 90 |
| Finish | White |
| Material | Aluminum body |
| IP Rating | IP20 (dry rated) |
| Certifications | ETL, cETL, Title 20, Title 24, Prop 65, Energy Star |
| Warranty | 3 Years Limited |
For more details on installation and compatibility, visit our Recessed Downlights Guide. Browse our selection of LED Downlights for other stylish lighting options.
